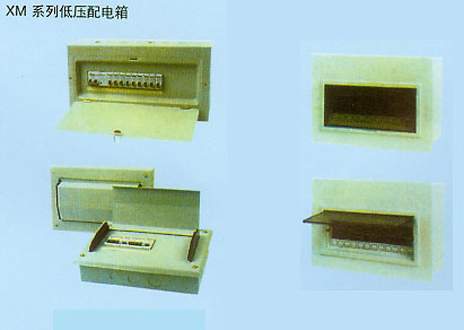

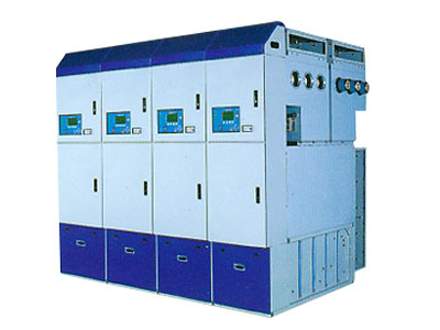

产品名称:XM系列低压配电箱
产品描述:
|
型号 |
尺寸 |
安装尺寸 | ||||
|
|
B高 |
A宽 |
C深 |
H |
I | |
|
-1×06C/PM |
320 |
350 |
125 |
280 |
250 | |
|
-1×08C |
320 |
400 |
125 |
280 |
300 | |
|
-1×10C |
320 |
450 |
125 |
280 |
350 | |
|
-1×12C |
320 |
450 |
125 |
280 |
350 | |
|
-1×14C |
320 |
500 |
125 |
280 |
400 | |
|
-1×16C |
320 |
550 |
125 |
280 |
450 | |
|
-1×18C |
320 |
625 |
125 |
280 |
525 | |
|
-1×20C |
320 |
625 |
125 |
280 |
525 | |
※开关位数最大20位 最小3位
|
型号 |
外形及安装尺寸 | |||||||||
|
A |
B |
C |
D |
E |
F |
G |
H |
I | ||
|
XM-6-5/PM |
218 |
201 |
95 |
195 |
185 |
25 |
155 |
55 |
130 | |
|
XM-6-6/PM |
218 |
256 |
95 |
195 |
230 |
25 |
155 |
180 |
190 | |
|
XM-6-7/PM |
218 |
256 |
95 |
195 |
230 |
25 |
155 |
180 |
190 | |
|
XM-6-8/PM |
218 |
256 |
95 |
195 |
230 |
25 |
155 |
180 |
190 | |
|
XM-6-9/PM |
218 |
360 |
95 |
195 |
335 |
25 |
155 |
215 |
150 | |
|
XM-6-10/PM |
218 |
360 |
95 |
195 |
335 |
25 |
155 |
215 |
150 | |
|
XM-6-11/PM |
218 |
360 |
95 |
195 |
335 |
25 |
155 |
215 |
150 | |
|
XM-6-12/PM |
218 |
360 |
95 |
195 |
335 |
25 |
155 |
215 |
150 | |
|
XM-6-13/PM |
218 |
360 |
95 |
195 |
335 |
25 |
155 |
215 |
150 | |
|
XM-6-14/PM |
218 |
360 |
95 |
195 |
335 |
25 |
155 |
215 |
150 | |
|
XM-6-15/PM |
218 |
433 |
95 |
195 |
410 |
25 |
155 |
285 |
355 | |
|
XM-6-16/PM |
218 |
433 |
95 |
195 |
410 |
25 |
155 |
285 |
355 | |
|
XM（R）/-6-5/PM |
218 |
201 |
100 |
195 |
198 |
25 |
155 |
55 |
130 | |
|
XM（R）/-6-6/PM |
218 |
256 |
100 |
195 |
253 |
25 |
155 |
180 |
190 | |
|
XM（R）/-6-7/PM |
218 |
256 |
100 |
195 |
253 |
25 |
155 |
180 |
190 | |
|
XM（R）/-6-8/PM |
218 |
256 |
100 |
195 |
253 |
25 |
155 |
180 |
190 | |
|
XM（R）/-6-9/PM |
218 |
360 |
100 |
195 |
357 |
25 |
155 |
215 |
250 | |
|
XM（R）/-6-10/PM |
218 |
360 |
100 |
195 |
357 |
25 |
155 |
215 |
250 | |
|
XM（R）/-6-11/PM |
218 |
360 |
100 |
195 |
357 |
25 |
155 |
215 |
250 | |
|
XM（R）/-6-12/PM |
218 |
360 |
100 |
195 |
357 |
25 |
155 |
215 |
250 | |
|
XM（R）/-6-13/PM |
218 |
360 |
100 |
195 |
357 |
25 |
155 |
215 |
250 | |
|
XM（R）/-6-14/PM |
218 |
360 |
100 |
195 |
357 |
25 |
155 |
215 |
250 | |
|
XM（R）/-6-15/PM |
218 |
433 |
100 |
195 |
430 |
25 |
155 |
285 |
355 | |
|
XM（R）/-6-16/PM |
218 |
433 |
100 |
195 |
430 |
25 |
155 |
285 |
355 | |
（装DZ47、C45、ABB、奇胜等系列小型断路器）
